North America's Largest Aluminum Extrusion Tooling Supplier

Gemini Group’s aluminum extrusion tooling companies design, build, and refurbish extrusion dies from 4″ to 43″ and press tooling up to 96″ and 100,000 lbs., and build six types of die shop equipment. Our team supports more than 200 extrusion locations across North America, from die design to on-site troubleshooting at your press.

ISO 9001:2015 Certified

ISO 9001

Sq. Ft. Production Space

221000

Mills, Lathes, EDMs, and Grinders

155 +

Employees

300 +

U.S. Locations

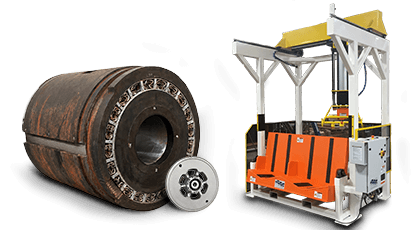

Extrusion Dies, Press Tooling, and Die Shop Equipment

Hollow and solid extrusion dies from 4″ to 43″. Press tooling up to 96″ and 100,000 lbs. And the die shop equipment that keeps them running.

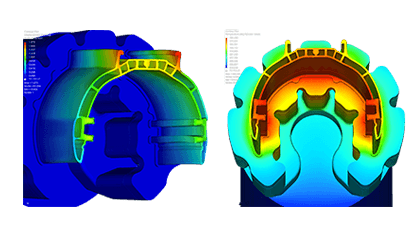

Design & Engineering

29 die design engineers, 165+ new designs a week, a library of 500,000+ unique profiles. Whatever you send us, odds are we’ve seen something similar.

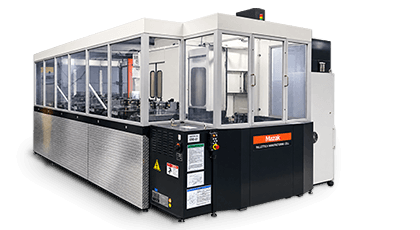

Equipment & Capabilities

Our team operates five U.S. locations with 221,000 sq. ft. of production space entirely dedicated to aluminum extrusion tooling. Our Michigan and Alabama locations add in-house heat treat and nitriding.

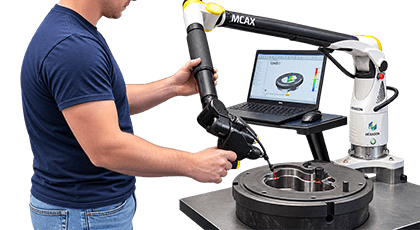

Quality & Certifications

Our aluminum extrusion tooling companies hold ISO 9001:2015 certification, and our team is ITAR registered with the U.S. Department of State. We’re also WBENC certified as a woman-owned business.

Trusted by Over 200 North American Extruders

Our technical sales team has nearly 500 years of combined boots-on-the-ground experience, most of it earned in customers’ shops, and draws on knowledge passed down over 50 years. Our die design engineers turn out 165+ new designs a week with a 90%+ first-run rate. That track record is why more than 200 extrusion locations across North America rely on us as their preferred aluminum extrusion tooling supplier.

Our Customers

Aluminum Extrusion Tooling FAQs

General FAQs

What does an aluminum extrusion tooling supplier provide?

Gemini Group's aluminum extrusion tooling companies design and build extrusion dies from 4" to 43", press tooling up to 96" and 100,000 lbs., and six die shop machines. Our team also corrects and repairs dies, relines containers, and provides on-site technical support.

Who is the largest aluminum extrusion tooling supplier in North America?

Gemini Group's aluminum extrusion tooling companies are North America's largest supplier of aluminum extrusion tooling, working with 214 of the continent's roughly 250 aluminum extrusion locations. That position comes from on-site support at the press and breadth of line: dies from 4" to 43", press tooling up to 96" and 100,000 lbs., and a complete lineup of die shop equipment from one team, backed by on-site support at the press.

What's the difference between an extrusion die and press tooling?

The die shapes the profile: its opening is the cross-section the aluminum takes as a heated billet is pushed through it. Press tooling is the rest of the stack in the press that holds and moves that billet. The container holds it, the stem and dummy block push it, and the shear blade cuts off the butt between billets. We build dies from 4" to 43" in diameter and press tooling up to 96" and 100,000 lbs.

How fast can you respond to a tooling emergency?

Our press tooling team answers every emergency request the same business day, never more than 24 hours. Recent examples include a container reline in 3 days and a new container in 8.

What certifications do your tooling companies hold?

Our aluminum extrusion tooling companies are ISO 9001:2015 certified and registered under ITAR with the U.S. Department of State's Directorate of Defense Trade Controls. We're also WBENC certified as a woman-owned business.

Where are your aluminum extrusion tooling locations?

Our team operates five U.S. locations: Thumb Tool & Engineering in Bad Axe, MI, Tri-R Dies in Youngstown, OH, Mid-South Central Extrusion Dies in Muscle Shoals, AL, and two Consolidated Tool locations in Muscle Shoals, AL.
